Overview

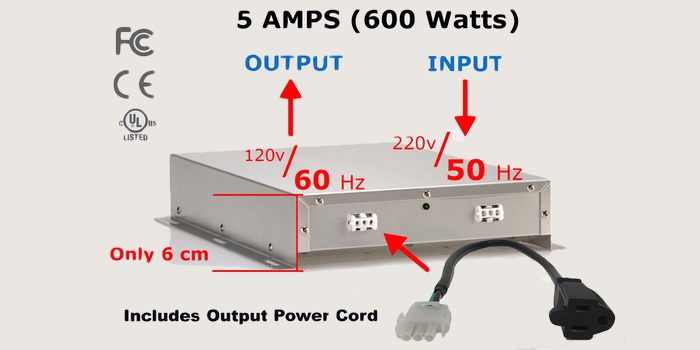

The XS-05 uses the overseas utilities electrical power to regenerate a new power that not only has the correct voltage and frequency, but through various filters and levels of control, acts as a voltage regulator that eliminates surges and transients. A power factor corrected input (PFC) provides harmonic filtering on the input by removing voltage and current distortions that may be caused by the appliance. The XS-05 provides the appliance with a high quality, constant, and noise free electrical output of 120v~60 Hz – anywhere in the world.

An appliance intended for the USA is designed, manufactured and tested to operate in a 120v~60 Hz environment. As appliances have evolved in electrical sophistication and government efficiency standards have continuously become more stringent, engineers are forced to design each individual component, and the unit itself, to operate in the substantially more efficient 60 Hz.

Installing a step-down transformer to power a 120v~60 Hz designed appliance from a 220v~50 Hz grid will cause the appliance to operate at 50 Hz. At best – it functions but not properly. But most likely, the appliance will have a shortened product life, failed components and unforeseen damage resulting in catastrophic failure.

In other words, the XS-05 does not power the appliance like an installed transformer. It is an adapter that converts 50 Hz utility power, providing an appliance with the correct voltage and frequency of 120v~60 Hz that it was designed and tested for.

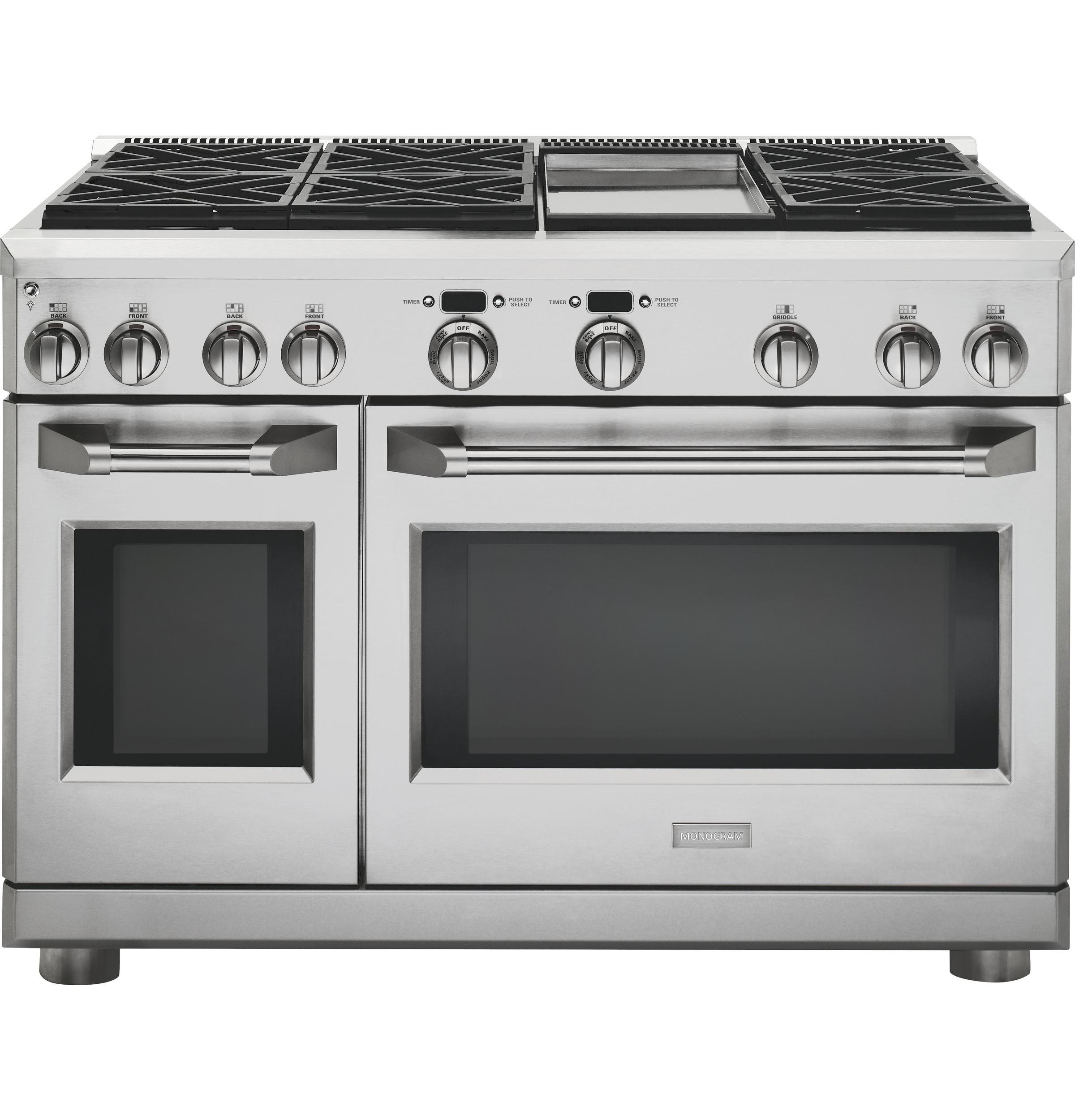

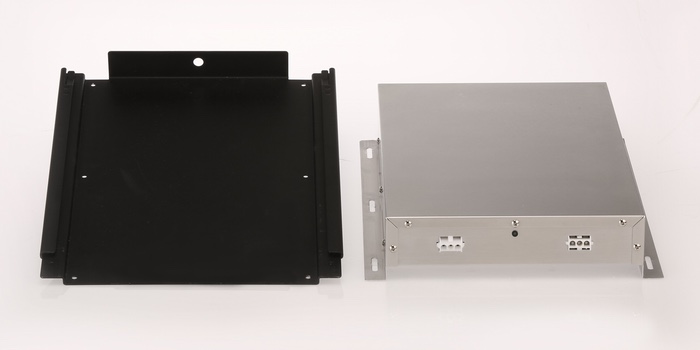

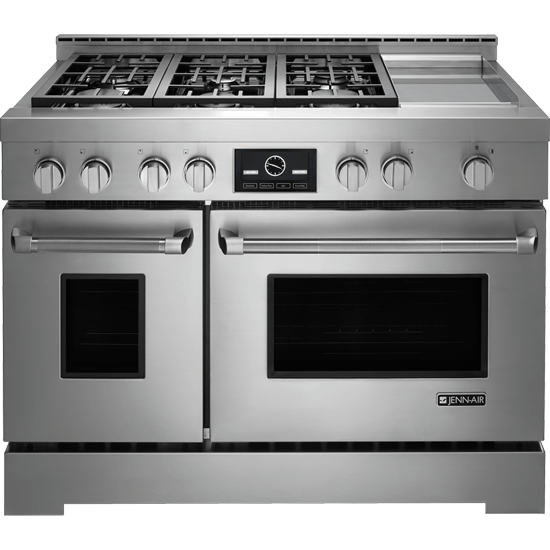

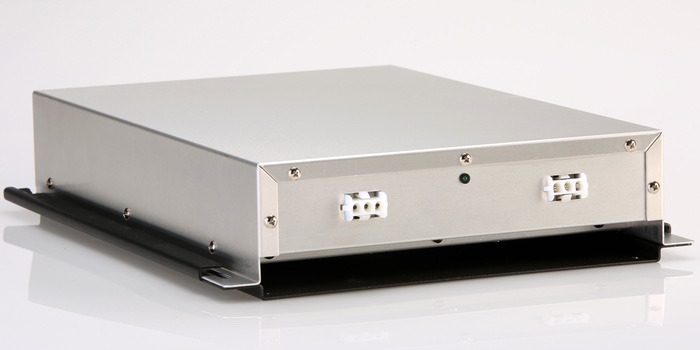

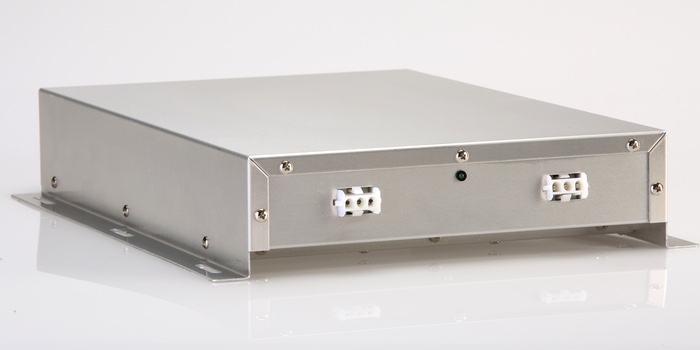

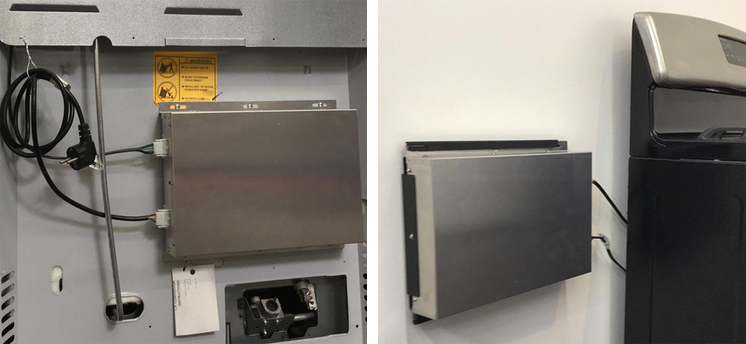

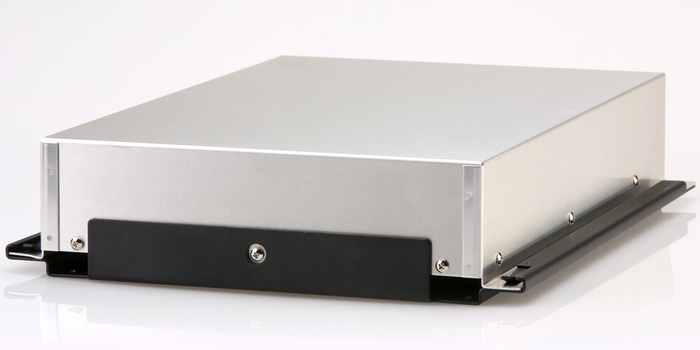

The XS-05 is a rugged full-featured device. Its specialized connecters provide for secure and safe installation. Its slim, lightweight design allows it to be mounted onto an appliance, or nearby via the included mounting plate. This version features specialized non-spark safety connecters for both input and output to provide for secure and safe installation with Gas Cooking Products.

Power
XS-05 is a full-featured sine wave output regenerator that produces new, clean, and constant AC power; eliminating line noise and ensuring optimum performance. It is capable of providing 120v~60 Hz electricity for running a single household appliance (up to 600W).

Through sophisticated electronics, as well as input and output EMI and RFI filters, it produces continuous power at over 92% efficiency and with output Harmonic distortion below 3%. High levels of regulation ensure 120v~60 Hz output with fluctuations below ± 2% (typical less than 1%).

Reliability
The XS-05 has sealed, solid-state electronics that protect against humidity and dust, ensuring reliability and a long product life.

Safety
Not only will electrical equipment perform better, but the XS-05 also acts as an advanced voltage regulator, which fully protects equipment against voltage irregularities such as under INPUT voltage as low as 180Vac and over voltage as high as 265Vac and provides an appliance with inrush surge protection of up to 150 Amps.

Audible alarms notify overload, short circuit and temperature.

The XS-05 meets International Standards. Even though this device would probably not be used in the USA, it also comes with UL and FCC approvals, giving the manufacturer/installer and the end user the confidence that their appliances, which meet these safety standards, are connecting to a device that is also meeting these safety standards.
  • Frequency Converter
  • Voltage Converter
  • Sophisticated Voltage Regulator
  • Surge Protection
  • Short Circuit Protection
  • Over-Current Protection
  • Power Factor Correction (PFC)
  • Thermal Protection
  • Lightweight
  • High Efficiency
  • Input EMI and RFI Filters
  • Output EMI and RFI Filters
  • Low Harmonic Distortion
  • Sealed, Solid State Electronics
  • Continuous Power
  • Audible Alarms
  • International Approvals
  • Wall Mounting Kit

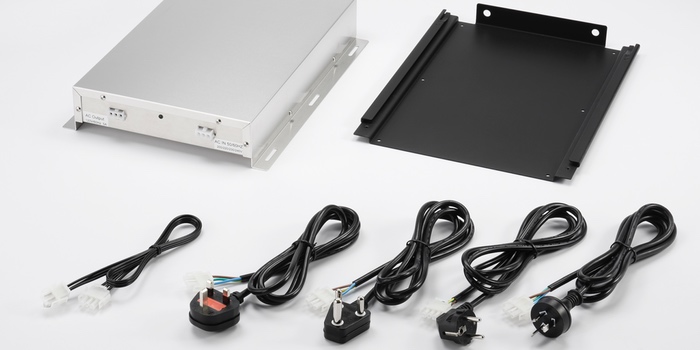

Standard Accessories:

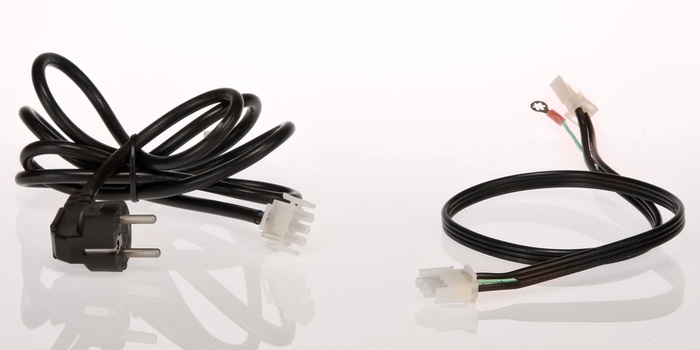

Wall Mount, (4) Input 3-pin Locking Connector Cord Type F, G, I, M
Output Power Cord with 3-pin Locking Connecter

XS-05SS
12060XS-05-SS
Output
Output Voltage 120Vac
Output Current-Amps @ 60Hz 5A
Voltage Regulation ± 2% From Setpoint
Output Frequency 60Hz (Auto-Synchronized to Mains)
Crest Factor 8:1
Voltage Waveform Sine Wave
Output Distortion (Resistive Load) <2%
Output Distortion (Reactive Load) <3%
Allowed Peak Current 40A
Standby Power 15W
Total Harmonic Distortion < 3% at 100% Linear Load
Output EMI Filter 150Khz - 30Mhz
Output RFI Filter 30Mhz - 1000Mhz
Clamp Level 190V
Protection
Over Current Protection Over Load Alarm Level: 100% ~ 135%
(alarm after 1 minute delay, shutdown after 1 minute alarm)
Over Load Shutdown Level: 136%
(shutdown after 2 second delay)
Short Circuit Pulsating Type, 40A Peak
Auto-Restart time: 30 seconds
Input
Nominal Voltage 200V/220V/230V/240V
Maximum Continuous Load 600W
Maximum Peak Load 1000W
Input Frequency 46Hz ̴ 65Hz
Phase Single
Noise Filtering Full-Time EMI/RFI Filtering
Input EMI Filter 150Khz -30Mhz
Input RFI Filter 30Mhz - 1000Mhz
Over Current Protection By Re-Settable
Over Current Protector
Voltage Range 180Vac ̴ 265Vac
Power Factor > 0.95
Audible Alarm Over Load Alarm:
Continuous alarm

Short-Circuit Alarm:
1 beep every 2 seconds

Thermo Alarm:
Every other 2 seconds, 32 beeps in 2 seconds
Switch-On Surge
(In-Rush Current)
<150A, 2ms
Voltage Interruption Ride Through 30mS
Efficiency >92%
Indicators
LCD Not Applicable
LED Not Applicable
Environmental and Safety
Operating Temperature Up to 2000 Meters:
0° to 45°C
(32°F to 113°F)
Transit/Storage Temp -15°C to 60°C
(5°F to 140°F)
Relative Humidity 5 – 95% Non-Condensing
Operating Altitude 0 ~ 3000 Meters
Moisture Sensitivity Sealed Electronics
Cooling
Natural Ventilation Yes
External Cooling Fan Control Not Applicable
Physical
Product Dimensions
L×W×H(cm/in)
35.00 × 27.00 × 6.00 cm
13.78 × 10.63 × 2.36 in
Net Product Weight
(kgs/lbs)
4.84 kgs
10.67 lbs
Carton Dimensions
L×W×H(cm/in)
51.00 x 47.00 x 20.00 cm
20.08 x 18.50 x 7.87 in
Shipping Weight 9.54 kgs
21.03 lbs
Warranty 2 Years, Full Replacement
Quality Control Standard ISO9001
International Approvals UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,
UL 1012, Seven Edition, October 14, 2008
UL-cUL: CAN/CSA-C22.2 No. 107.1-01, September, 2001
DEMKO-CB IEC60950-1:2005+A1:2009+A2:2013 (Ed. 2.2)
TUV/SUD-CB IEC 60335-1:2010+A1:2013 (Ed. 5.1)
FCC Part 15: subpart B
EMC 2004/108/EC

Some applications may require isolation from main power grid. We can offer PowerXchanger designed and manufactured Isolation Transformer XTI-ISO2K.

If your application is in conjunction with the purchase of a PowerXchanger product we can offer a reduced packaged price.

Please contact us via e-mail contact@adaptivefrequency.com for technical support and pricing.

  • UL-ULus (CCN: QQFU/7) Power Units Other Than Class 2,
  • UL 1012, Seven Edition, October 14, 2008
  • UL-cUL: CAN/CSA-C22.2 No. 107.1-01, September, 2001
  • DEMKO-CB IEC60950-1:2005+A1:2009+A2:2013 (Ed. 2.2)
  • TUV/SUD-CB IEC 60335-1:2010+A1:2013 (Ed. 5.1)
  • FCC Part 15: subpart B
  • EMC 2004/108/EC
  • PowerXchangers meet IEC Standard 60335-1 and are considered a critical component of an appliance when used with another appliance that also meets the same IEC 60335-1 International Safety Standard
